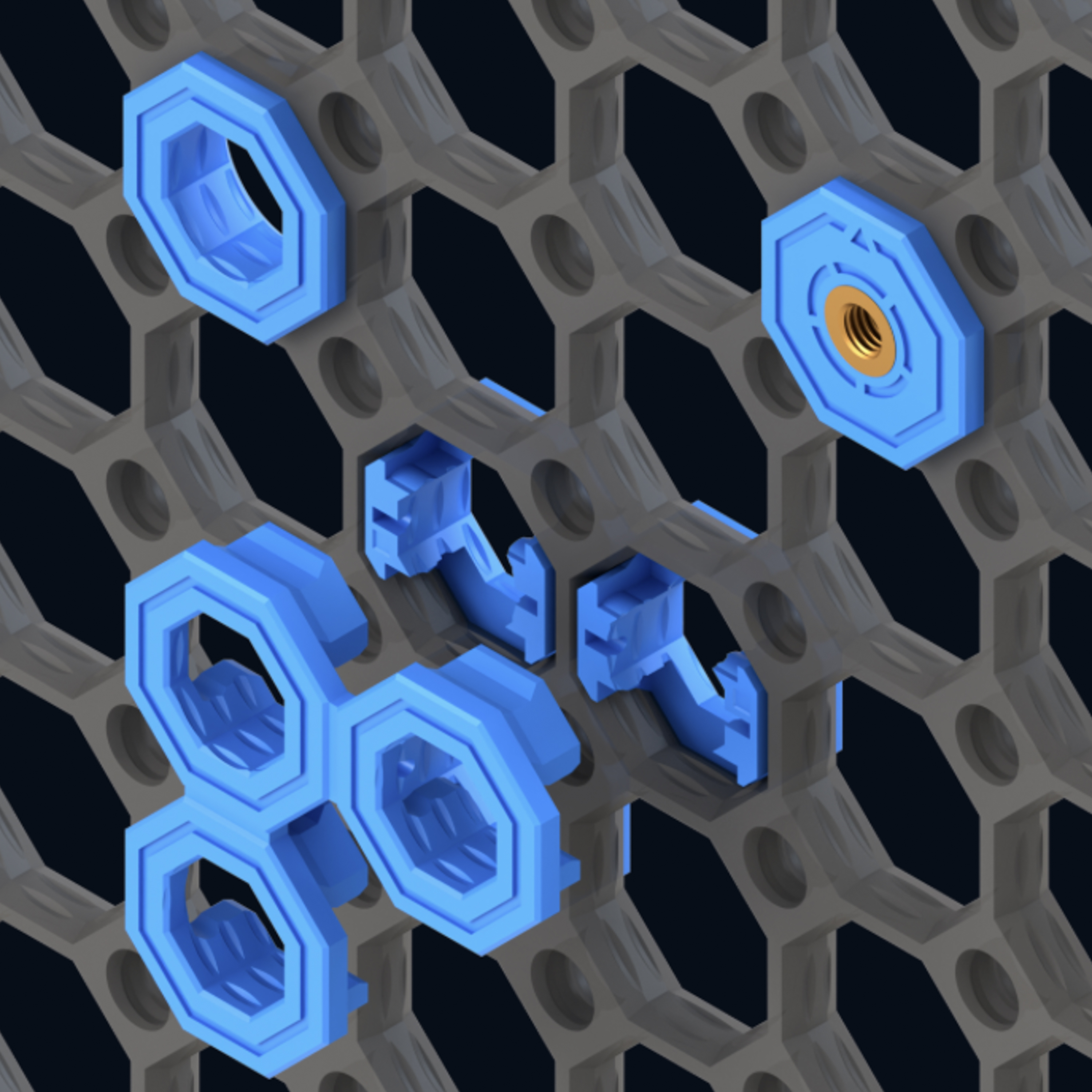

Snaps

Snaps “snap” into the Large Holes of the Multiboard Tiles and have a Mid Hole for attaching accessories.

Snap variations:

• Regular: Clicks into place and is completely symmetrical.
• Moderate Weight Bearing: Holds a lot of weight in ONE direction. This is the most commonly used Snap. They must be inserted at an angle.
• Heavy Weight Bearing: Holds more weight than Moderate Snaps, but they only work with Tiles that are offset from wall. They also hold weight in one direction and must be inserted at an angle.

Double-Sided Snaps (DS Snaps):

DS Snaps have two parts that snap together on opposite sides of the Multiboard Tiles.

DS Snaps are useful for:

• Creating Tiles that are mounted onto a surface that are removable.
• Freestanding Tiles that require structural support on both sides of the tile, or will have accessories on both sides.

Two Parts:

• Part A: Usually goes at the back of the Tiles. There can be different variations of Part A:

  • Offset Snap Mounts (DS Part A): They create a 6.25 mm offset from the surface and have a screw hole for mounting it to a wall. Learn more in the Tile Mounting Guide.

• Part B: Usually goes at the front of the Tiles.

Mid Hole

Most Snaps have a Mid Hole for attaching accessories. A Mid Hole can take 3 connection accessories:
